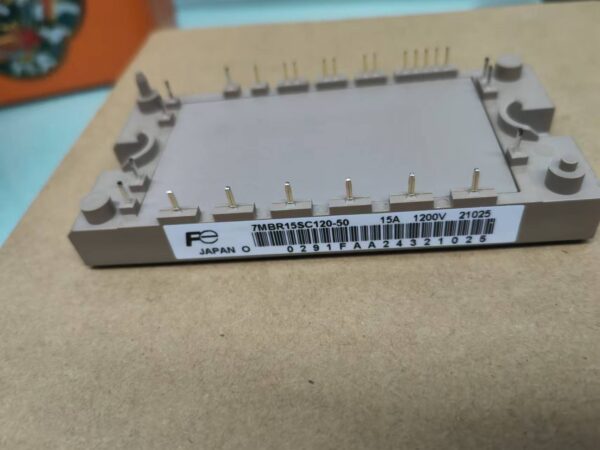

Type Designator: 7MBR15SC120
Type: IGBT + Anti-Parallel Diode
Type of IGBT Channel: N
Pcⓘ – Maximum Power Dissipation: 110 W
|Vce|ⓘ – Maximum Collector-Emitter Voltage: 1200 V
|Vge|ⓘ – Maximum Gate-Emitter Voltage: 20 V
|Ic|ⓘ – Maximum Collector Current: 25 A @25℃
|VCEsat|ⓘ – Collector-Emitter saturation Voltage, typ: 2.15 V @25℃
|VGEth|ⓘ – Maximum G-E Threshold Voltag: 8.5 V
Tjⓘ – Maximum Junction Temperature: 150 ℃
trⓘ – Rise Time, typ: 250 nS
Package: MODULE
